What you’ll learnHow to configure the API endpoint so FlowDrop knows where to send requests for loading nodes, saving workflows, and executing pipelines.
In Step 1 the canvas was empty because nothing was serving it data. Here you’ll point the editor at a backend — and run a real one — so it can load nodes into the sidebar and save your work. This is the step that turns a blank canvas into a working editor.

​
Why endpoints matter

FlowDrop is a frontend editor that talks to a backend API for things like:
  • Loading available node types and categories
  • Saving and loading workflows
  • Executing workflows and pipelines
  • Managing playground sessions
Without an endpoint configuration, the editor can render a canvas, but it can’t load nodes into the sidebar or persist any data. This is why Step 1 showed an empty canvas — there was no API to fetch nodes from.

​
The createEndpointConfig helper

FlowDrop provides a helper that generates a full endpoint configuration from a single base URL:
import { mountFlowDropApp } from '@flowdrop/flowdrop/editor';
import { createEndpointConfig } from '@flowdrop/flowdrop/core';
import '@flowdrop/flowdrop/styles';

const app = await mountFlowDropApp(document.getElementById('editor'), {
  endpointConfig: createEndpointConfig('/api/flowdrop'),
  height: '100vh'
});
The createEndpointConfig('/api/flowdrop') call sets up paths for all API operations under that base URL. It also configures sensible defaults: a 30-second timeout and automatic retries with exponential backoff.

​
Run a backend

A config that points at nothing won’t load nodes or save anything. The fastest way to get a real endpoint is the reference Express server that ships with FlowDrop (apps/example-server-express in the repo). It implements the full API — nodes, categories, port config, and workflow CRUD — backed by in-memory demo data, so you have something live to develop against in seconds:
cd apps/example-server-express
pnpm install
pnpm dev
It starts on http://localhost:7104 and serves the API under http://localhost:7104/api/flowdrop. Open that root URL in a browser to see every endpoint it exposes.

​
Point the editor at it

Your editor (say, Vite’s http://localhost:5173) and the API (http://localhost:7104) are different origins. The cleanest fix — and the one that mirrors production, where the two are usually same-origin — is a dev proxy, so the relative /api/flowdrop from createEndpointConfig just works:
vite.config.js
import { defineConfig } from 'vite';
import { svelte } from '@sveltejs/vite-plugin-svelte';

export default defineConfig({
  plugins: [svelte()],
  build: { target: 'es2022' },
  server: {
    // Forward API calls to the example server.
    proxy: { '/api': 'http://localhost:7104' }
  }
});
With both servers running, reload the editor — the sidebar now fills with the node types served by your backend. The endpoint is live, and Save persists to it.

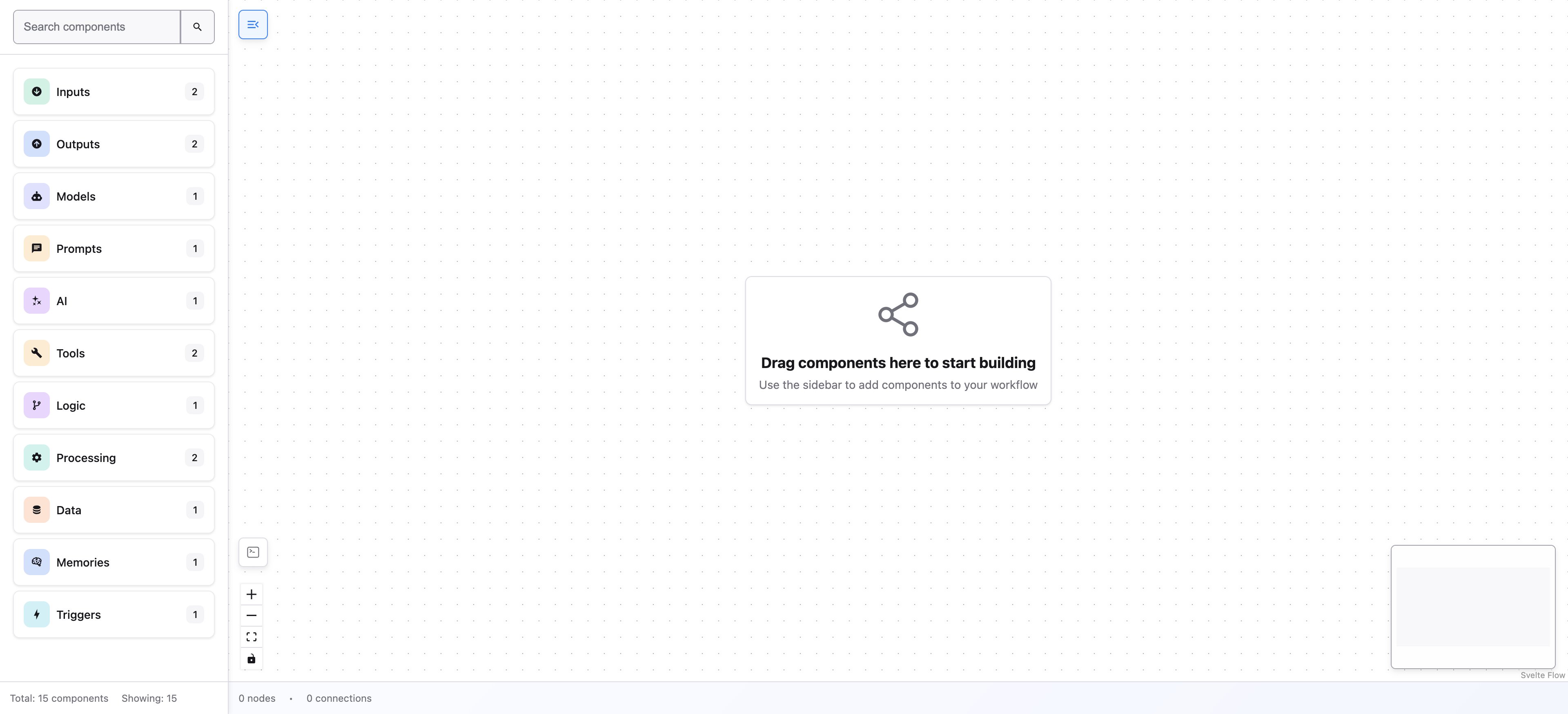

The FlowDrop editor with an endpoint configured, showing node types loaded into the sidebar from the backend API.
Don’t want a proxy? Point createEndpointConfig straight at the absolute URL instead — the example server enables CORS:
createEndpointConfig('http://localhost:7104/api/flowdrop')

​
Customizing endpoints

You can override individual settings by passing a second argument:
const endpointConfig = createEndpointConfig('/api/v2/flowdrop', {
  timeout: 60000,
  retry: {
    enabled: true,
    maxAttempts: 5,
    delay: 2000,
    backoff: 'exponential'
  }
});
A backend is what makes the editor useful.You can mount it without one — it renders the canvas and only calls the API when an action (load, save, execute) fires. But until an endpoint is reachable it has no nodes to place and nothing to save, so start the example server above to see FlowDrop actually do something.

​
What’s next

Now that the editor knows where the API lives, it’s time to define your first node and see it appear in the sidebar.
Tutorial — Step 2 of 5 ← Embedding the editor · Next: Your first node →
