Node types

Built-in node types and the port system in FlowDrop.

FlowDrop ships with 9 built-in node types, each designed for specific workflow patterns.

Built-in types

Type	Purpose	Description
default	Full-featured nodes	Input/output port lists, icon, label, description
simple	Compact layout	Header with icon and description, space-efficient
square	Icon-only	Minimal design for simple operations
tool	AI agent tools	Tool metadata with badge label
gateway	Branching logic	Conditional output paths with multiple branches
terminal	Start/end points	Circular nodes for workflow entry and exit
idea	Conceptual flow	BPMN-like flow nodes for conceptual diagrams
note	Documentation	Markdown-enabled sticky notes (no execution)
atom	Value supplier	Minimalist label-only pill that supplies a value

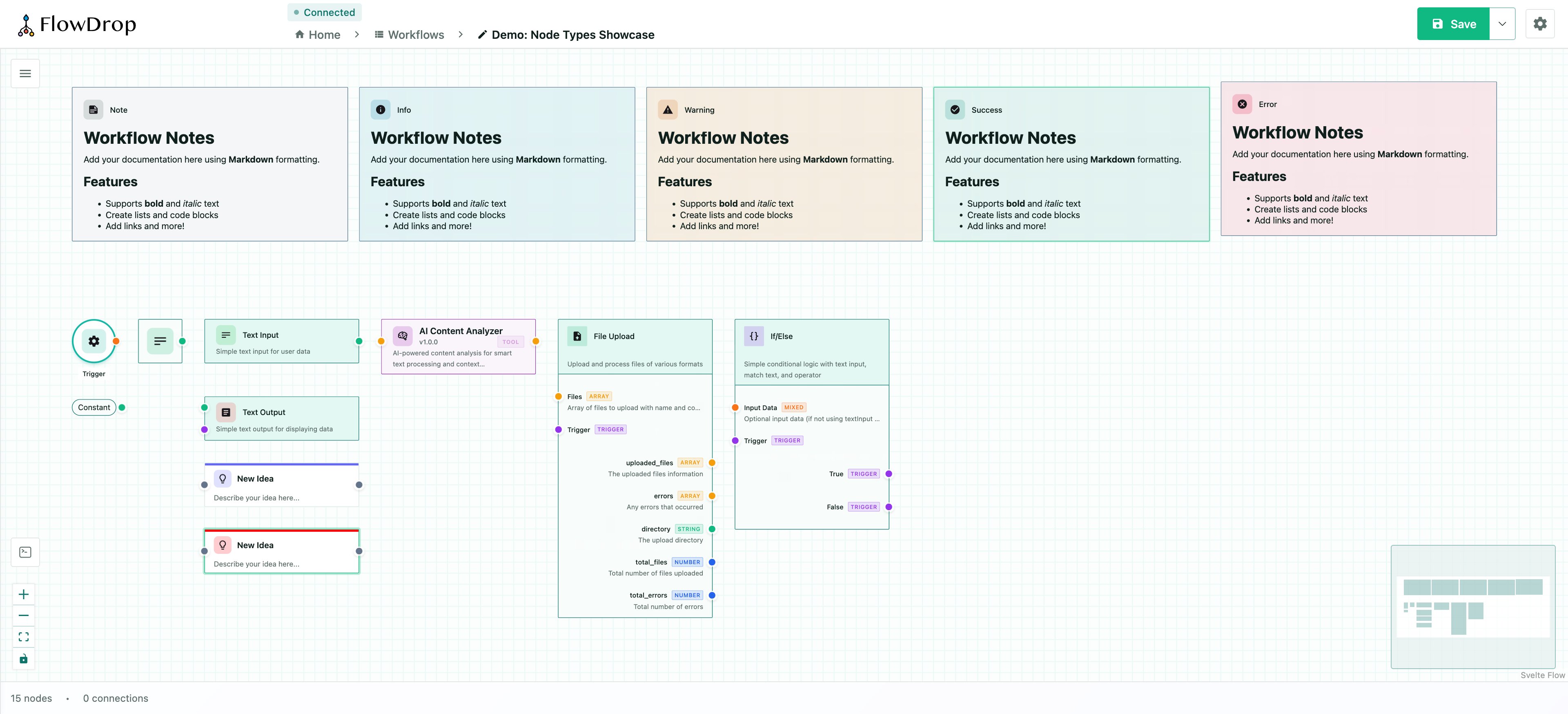

The nine built-in node types, side by side.

For the complete JSON structure, see Node Structure. For port definitions and data types, see Port System & Data Types.

default

Full-featured node with input/output port lists, icon, label, and description. Suitable for most workflow steps.

simple

Compact layout with header icon and description. Space-efficient for nodes that don’t need visible ports.

square

Icon-only minimal design. Ideal for simple operations where the icon alone conveys the purpose.

tool

Designed for AI agent tools. Displays tool metadata including version, badge label, and description.

gateway

Branching logic node with conditional output paths. Supports multiple branches for routing workflow execution.

terminal

Circular start/end point nodes. Used to mark workflow entry and exit points.

idea

Conceptual idea node for BPMN-like flow diagrams. Lightweight node with a colored top border accent.

note

Markdown-enabled sticky notes for documentation. These are non-executing nodes meant for annotations.

atom

A minimalist, label-only node that renders as a compact pill hugging its content — designed for “supplies a value” nodes such as a Constant (and Cast in the future). The atom owns no domain semantics of its own; what it shows and the data type it emits are driven entirely by configuration, so a single node type can back many small value-providing nodes.

The body text resolves in order:

1. The value of the config key named by valueKey (using the field’s oneOf titles when present)
2. The node’s label
3. The placeholder, rendered dimmed

The bound output port’s data type can be driven dynamically from config, and a server- or definition-provided color accents the pill border.

Display and behavior are configured through extensions.ui.atom (AtomUIConfig):

Property	Type	Description
valueKey	string	Config key whose value becomes the node body. Falls back to data.label.
valueTypeKey	string	Config key holding the selected value’s type (a port dataType id). The bound output port adopts this type.
outputPortId	string	Output port id driven by valueTypeKey. Defaults to the first output port.
shape	'pill' | 'rectangle'	Body shape. 'pill' (default) is fully rounded; 'rectangle' is lightly rounded.
prefix	string	Dimmed affordance rendered before the body (e.g. '→ '). Stays visible while the body ellipsizes; hidden in the empty state.
placeholder	string	Text shown (dimmed) when the resolved body value is empty or unset.
maxWidth	number	Max body width in px before the label ellipsizes.

{
  "type": "atom",
  "extensions": {
    "ui": {
      "atom": {
        "valueKey": "value",
        "valueTypeKey": "valueType",
        "shape": "pill",
        "prefix": "= ",
        "placeholder": "Set a value…",
        "maxWidth": 120
      }
    }
  }
}

Ports are resolved from the node’s definition like any other node, so atoms participate in connection validation and proximity connect normally. The pill is a fixed 40px tall; when it has a single port, the handle centers vertically, and multiple ports distribute evenly.

Connection validation

FlowDrop validates connections automatically:

• Type compatibility — only compatible port data types can connect
• Cycle detection — prevents circular dependencies (O(V+E) algorithm)
• Loopback prevention — nodes cannot connect to themselves

Proximity connect

When dragging a node near compatible ports, FlowDrop can auto-connect them. This is configurable via editor settings:

const app = await mountFlowDropApp(container, {
  settings: {
    editor: {
      proximityConnect: true,
      proximityConnectDistance: 50 // pixels
    }
  }
});

Dynamic ports

Nodes can define user-configurable ports through special config properties:

{
  "dynamicInputs": {
    "type": "array",
    "title": "Input Ports",
    "items": {
      "type": "object",
      "properties": {
        "id": { "type": "string", "title": "Port ID" },
        "name": { "type": "string", "title": "Port Name" },
        "dataType": { "type": "string", "title": "Data Type", "default": "any" }
      }
    }
  }
}

Custom node types

Beyond the built-in types, you can register custom Svelte components as node types. See the Custom Nodes guide for details.
